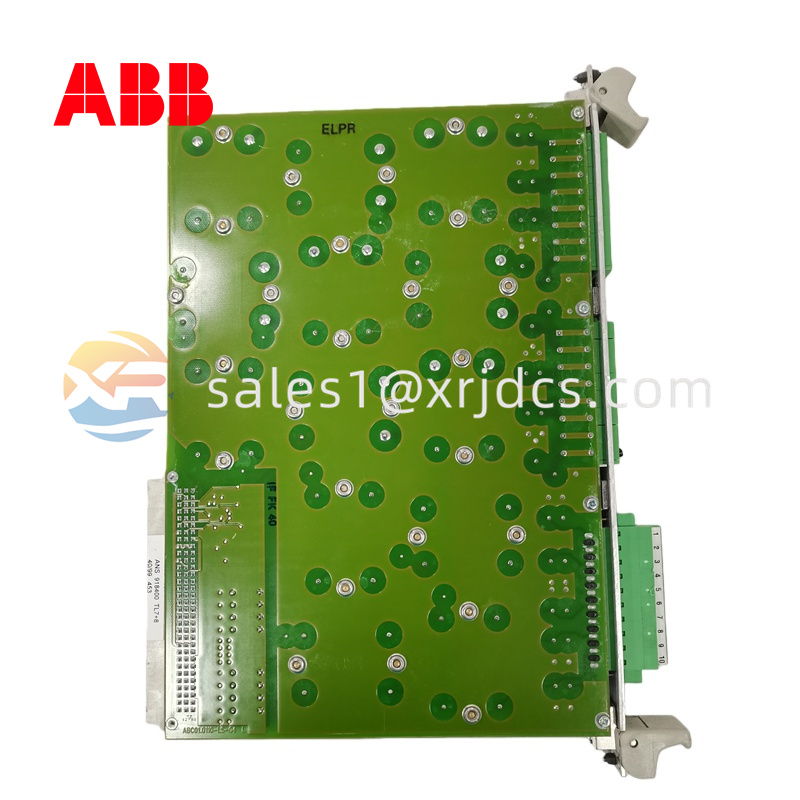

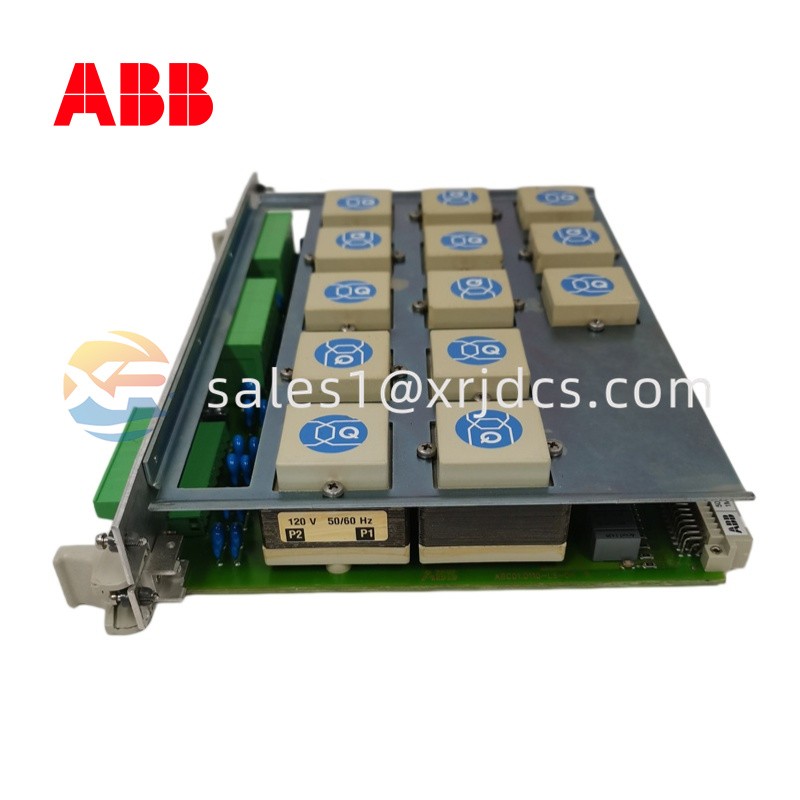

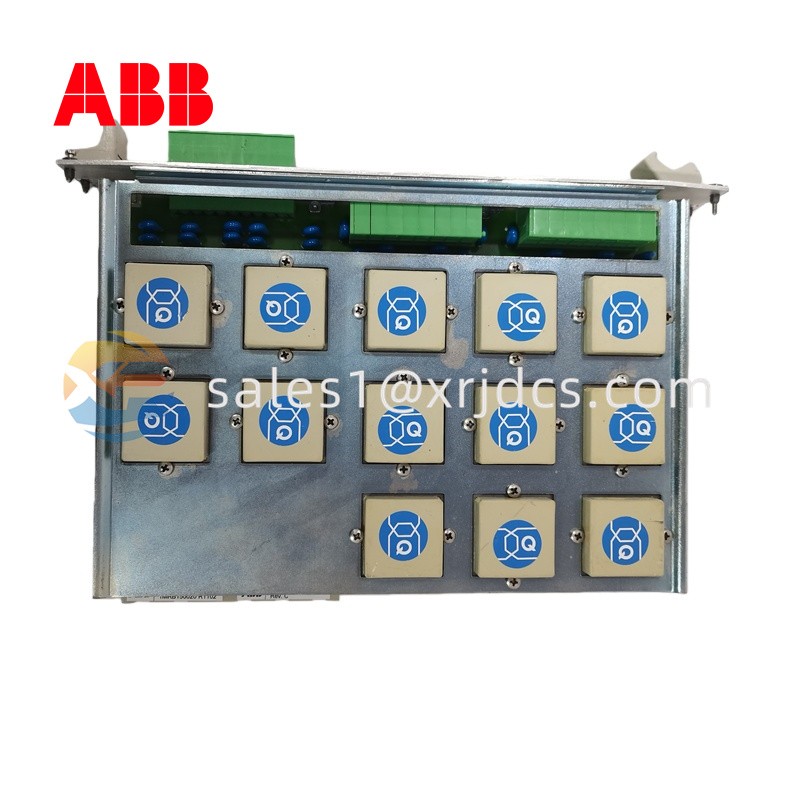

ABB 500MTM02 1MRB150020R1102 – Industrial I/O Binary Input Module
Product Overview
The ABB 500MTM02 1MRB150020R1102 is an industrial‑grade I/O (Input/Output) module designed for automated control systems within PLC and DCS environments. Specifically categorized as a binary (digital) input module, it excels at acquiring status signals from field devices, switches, sensors, and other binary sources essential for monitoring and control logic in industrial applications. With strong interference resistance and modular expandability, this module supports reliable data acquisition even in demanding and electrically noisy environments.
Key Features & Functional Highlights
Digital Binary Input Acquisition – Captures dry and wet contact signals to detect on/off or status information from industrial field devices.
High Interference Immunity – Designed with strong anti‑EMI capability, ensuring stable operation in electrically challenging environments.
Local Timestamp Capability – Each input event can be marked with a local timestamp for accurate event tracking and fault analysis.
Signal Filtering & Debouncing – Provides software‑based filtering and oscillation signal recognition to improve signal reliability.
Redundant Input Design – Enhances continuity of signal acquisition even under certain fault conditions.
Modular & Scalable Architecture – Easily integrates with other ABB 500 series I/O modules to expand automation system capability.
Communication Compatibility – Works seamlessly with standard industrial buses and hosts such as ABB PLC platforms (e.g., AC500), with expandable protocols (e.g., Modbus, Profibus).
Technical Specifications
| Parameter |
Details |
| Model |
ABB 500MTM02 1MRB150020R1102 |
| Product Type |
Binary Input I/O Module |
| Manufacturer |
ABB |
| Input Channels |
Multiple digital inputs (typically up to 16 channels) |
| Input Type |
Dry contact / Wet contact signals |
| Electrical Isolation |
Channels isolated for system safety |
| Response Time |
Fast, suitable for real‑time acquisition |
| Power Supply |
Typically 24 V DC (industry standard for PLC I/O) |
| Environment |
Industrial conditions with robust EMC immunity |
| Compatibility |
Works with ABB PLC and automation platforms |
| Mounting |
DIN‑rail or rack as per system design |
Applications & Use Cases
The ABB 500MTM02 1MRB150020R1102 module plays a critical role in industrial and automation systems where binary signals must be collected and relayed to control logic—examples include:
Manufacturing & Production Lines – Monitoring switch status, safety interlocks, conveyor runs, and equipment conditions.
Process Control Systems – Detecting equipment state changes (e.g., valve positions, level switches) for feedback to PLC/DCS.
Energy & Utilities – Digital status capture for breakers, protection relays, and grid automation alarms.
Building & Facility Automation – Binary monitoring for lighting control, access systems, HVAC interlocks, etc.
Safety & Alarm Systems – Input event logging and rapid status detection for alarm logic and shutdown sequences.
Architecture & Module Composition
The ABB 500MTM02 module features a rugged modular design:
I/O Interface Block – Terminals for field wiring and sensor connections.
Signal Conditioning Circuits – Provide filtering and signal debouncing to deliver clean digital inputs.
Isolation Barriers – Ensure electrical separation between inputs and controller logic for safety.
Communication Link – Backplane or bus connectivity that interfaces with the automation host (PLC/DCS).
Installation & Configuration Tips
Power Down System Before Mounting: Ensure the host PLC or rack is de‑energized before insertion to avoid electrical faults.
Use Shielded Cabling: Reduce noise in environments with heavy electrical interference.
Assign Channel Logic in PLC Program: Map digital inputs logically to match field wiring.
Test Input Response: Validate individual channel response prior to full commissioning.
Maintenance & Reliability Guidance
Inspect Connectors Regularly: Check for loose or oxidized connections that might distort binary readings.
Monitor Channel Status Alerts: Use host diagnostics to flag intermittent or failed inputs.
Clean Dust & Debris: Maintain airflow and free terminal blocks to prevent overheating in dense rack environments.
Why Choose the ABB 500MTM02 1MRB150020R1102?
This module provides an excellent combination of performance, reliability, and flexibility for digital signal acquisition in industrial systems. Its robust industrial design, high interference immunity, and modular expandability make it a dependable choice for automation professionals aiming to build resilient control networks with accurate real‑time status acquisition.
