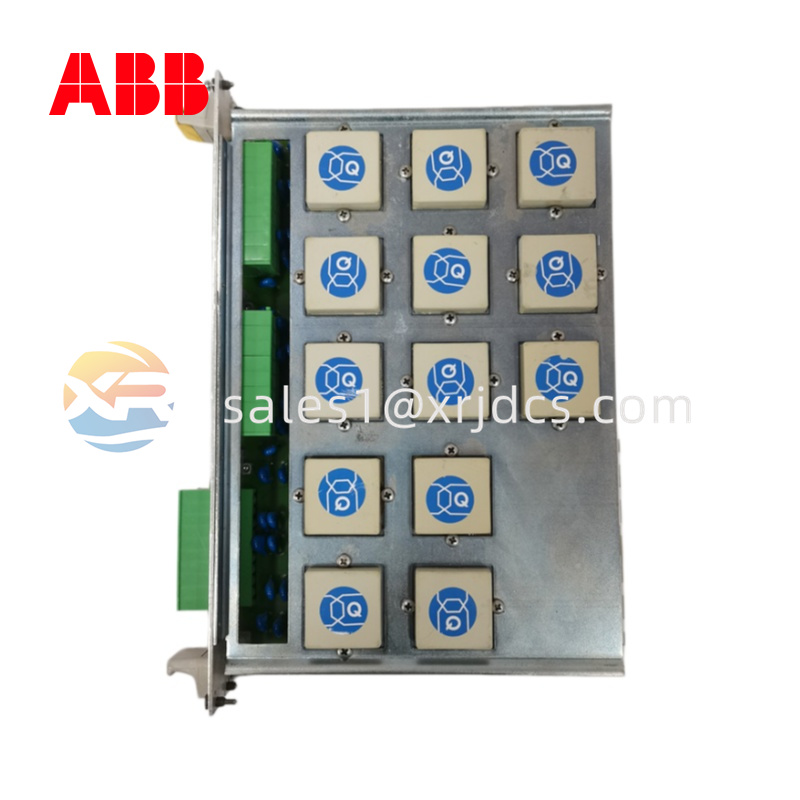

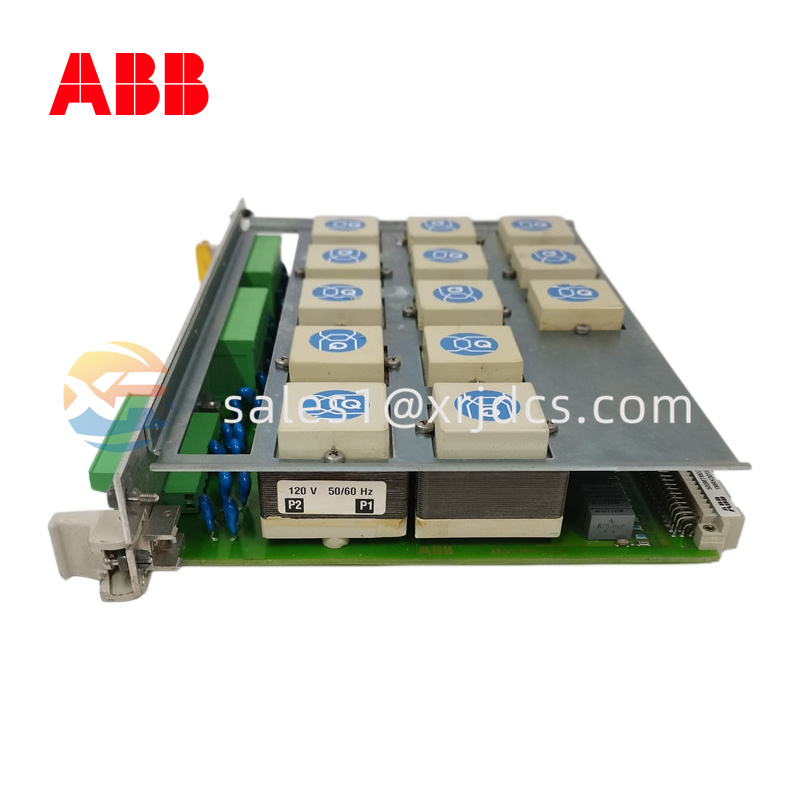

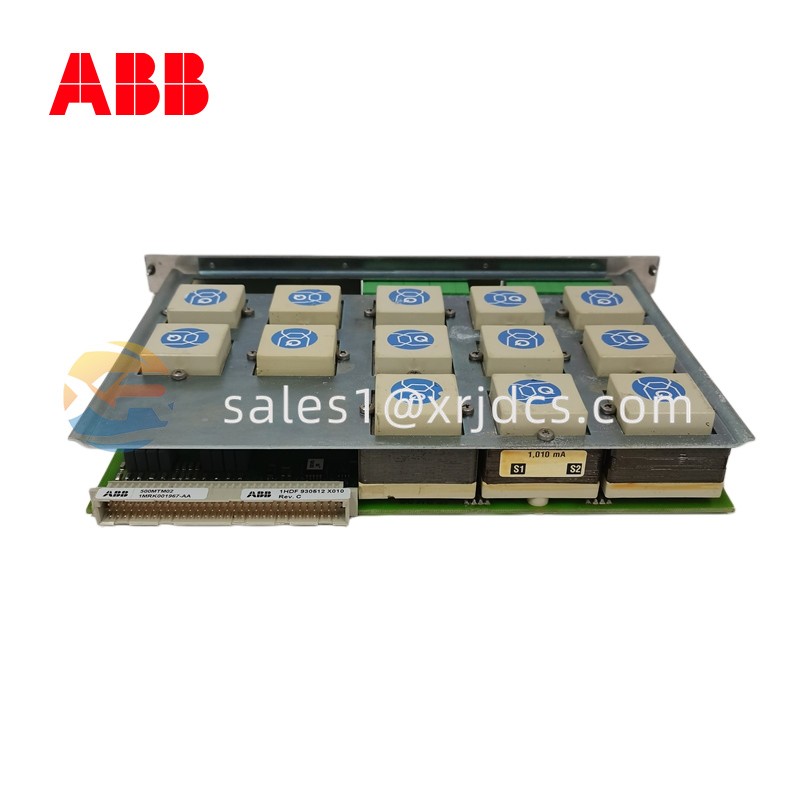

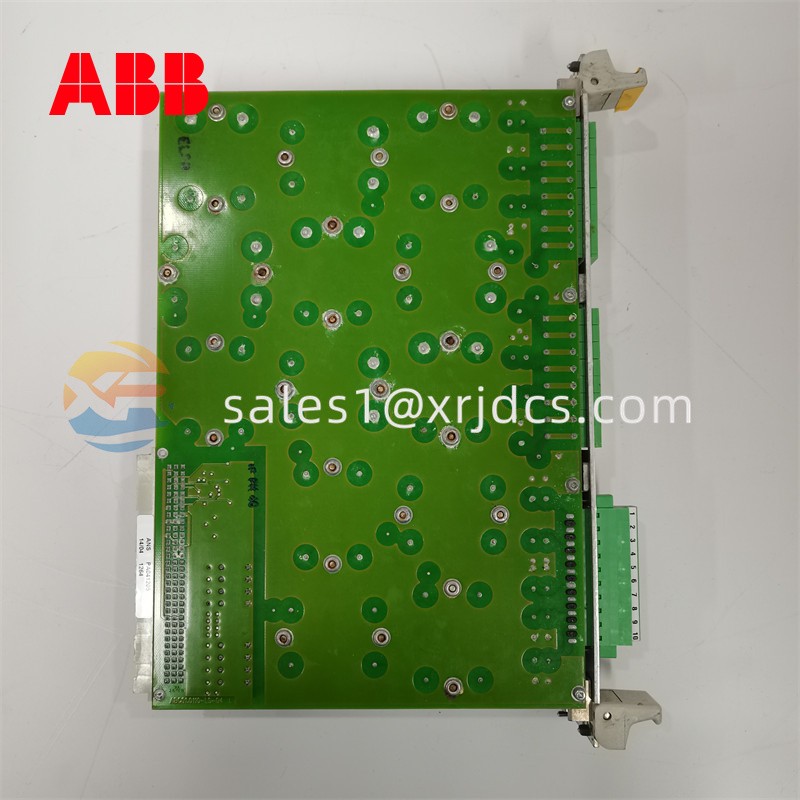

ABB 500MTM02 1MRK001967-AA – Motor Temperature Monitoring Module
Application Areas
The ABB 500MTM02 1MRK001967-AA is specifically designed for motor temperature monitoring and protection, making it an essential component in systems where thermal stability is critical. It is widely used in:
Electric motor protection systems
Power generation and distribution plants
Industrial automation and control systems
Oil & gas and petrochemical industries
Heavy machinery and process industries
Product Overview
The 500MTM02 module from ABB provides accurate temperature measurement and monitoring to ensure safe operation of motors and associated equipment. By continuously tracking thermal conditions, it helps prevent overheating, extends equipment lifespan, and supports predictive maintenance strategies.
This module is engineered for seamless integration into ABB control and protection systems, offering reliable performance even in demanding industrial environments.
Technical Specifications
The key technical parameters are outlined below in a descriptive format:
The model 500MTM02 (1MRK001967-AA) operates as a dedicated temperature monitoring module, supporting multiple sensor inputs such as RTDs and thermistors. It is designed for continuous-duty operation with high measurement accuracy and stability. The module typically operates within a temperature range of -20°C to +70°C, and it supports standard industrial communication interfaces for integration into control systems. Installation is performed within control panels or system racks, depending on the configuration.
Key Features
Multi-Channel Temperature Monitoring: Supports multiple sensor inputs simultaneously
High Measurement Accuracy: Ensures reliable thermal data for critical equipment
Early Fault Detection: Helps identify overheating conditions before failure occurs
System Integration: Compatible with ABB automation and protection platforms
Industrial-Grade Design: Resistant to harsh environmental conditions
Structure & Composition
The ABB 500MTM02 module is constructed with high-quality electronic components to ensure durability and performance. Its internal structure includes:
Signal acquisition circuits for temperature sensors
Microprocessor-based data processing unit
Communication interface modules
Protective enclosure for industrial environments
Installation & Maintenance
Installation is straightforward and flexible, allowing mounting within standard control cabinets or racks. Proper sensor wiring and configuration are essential for optimal performance.
For maintenance:
Regularly verify sensor connections and calibration
Monitor system diagnostics for abnormal readings
Keep the module within recommended environmental conditions
Additional Benefits
Improves operational safety by preventing motor overheating
Reduces maintenance costs through condition-based monitoring
Enhances equipment reliability and service life
Supports efficient plant operation with real-time temperature insights
