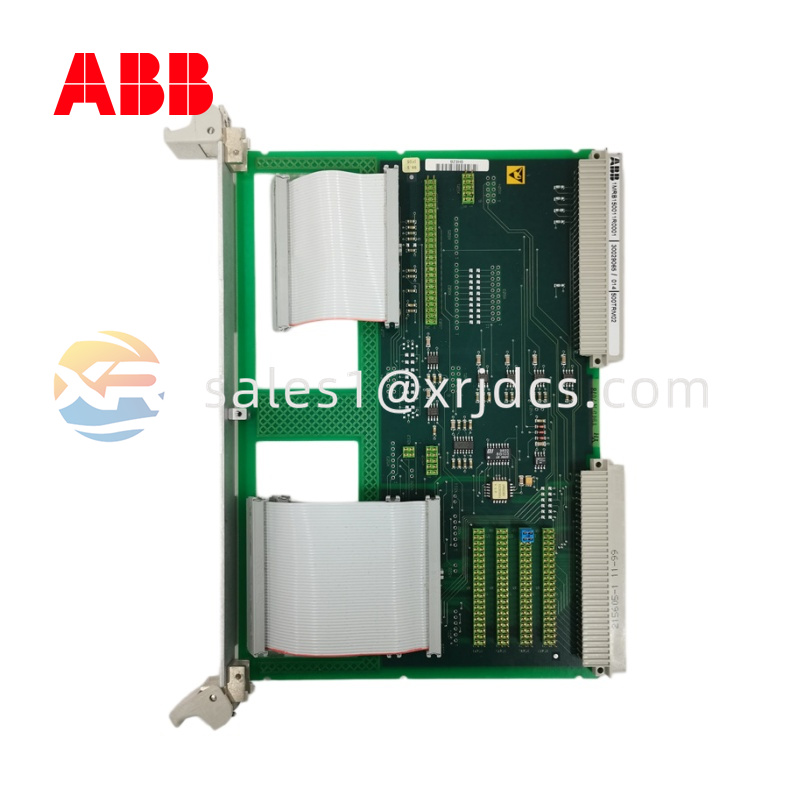

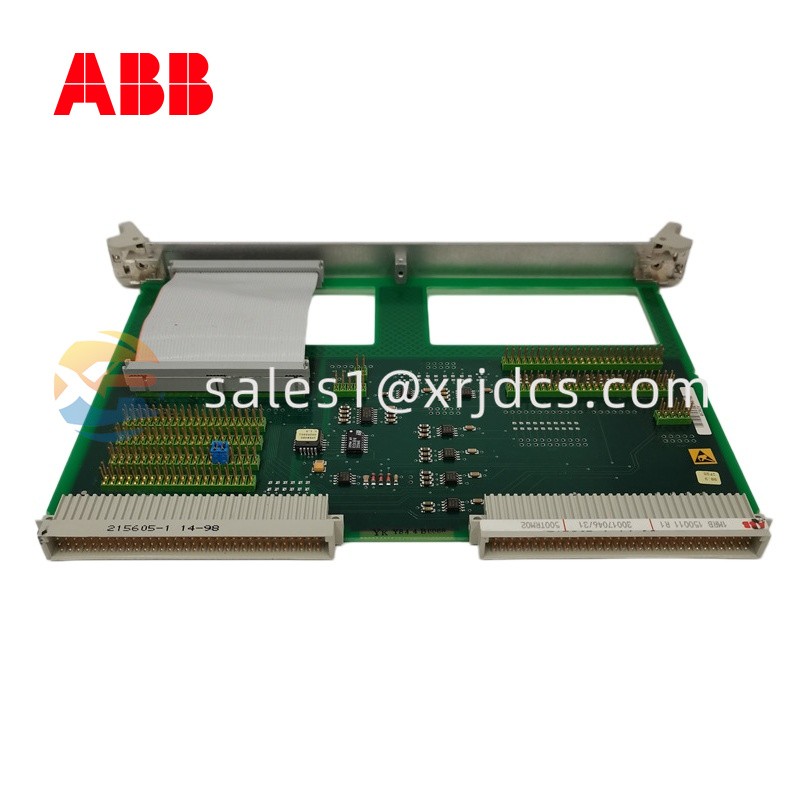

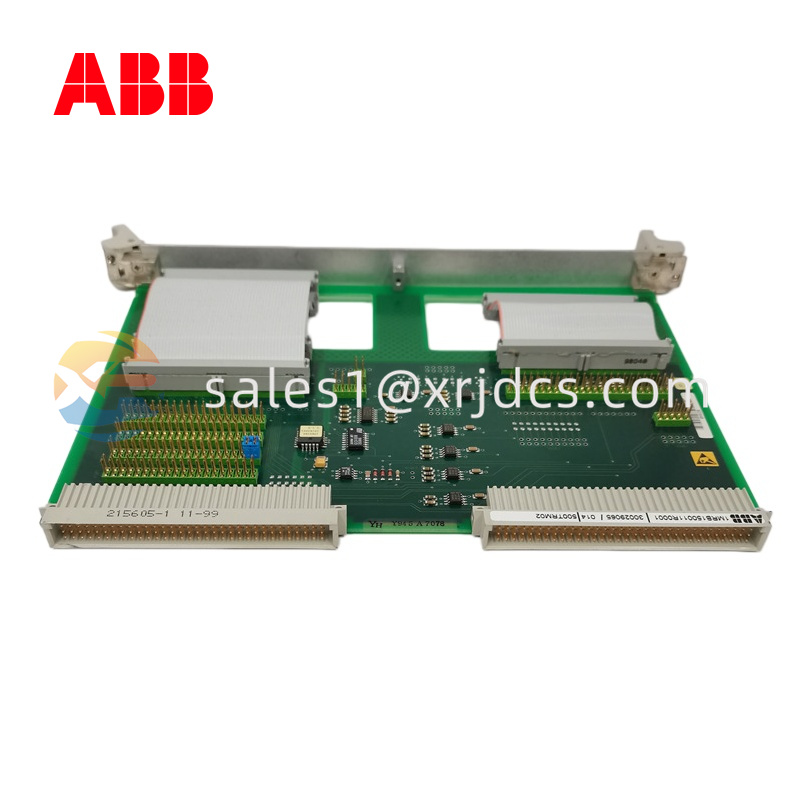

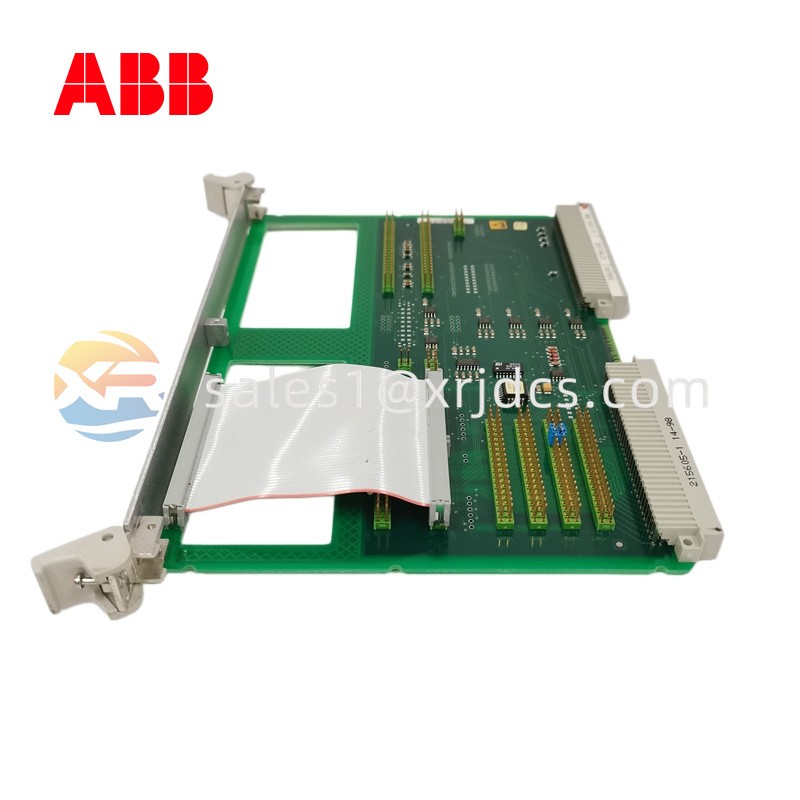

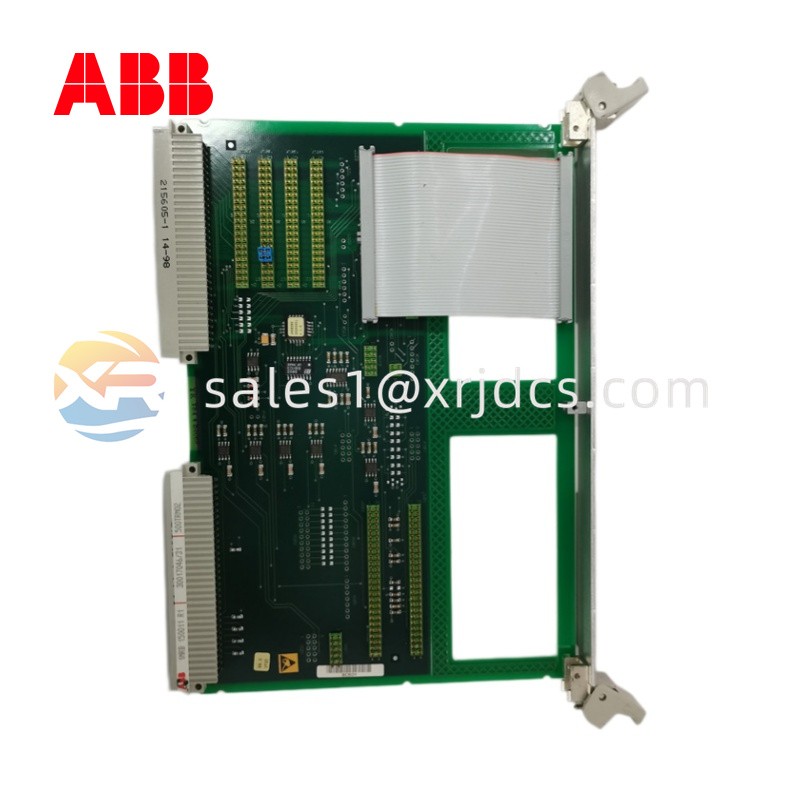

Switzerland The ABB 500TTM02 (1MB150021R01161 / HF930712X010) is an industrial-grade temperature transmitter module designed for accurate signal conversion and stable process monitoring. It is widely used in environments where precise temperature measurement is critical for operational safety and efficiency.
Typical application areas include:
Power generation plants (boilers, turbines, cooling systems)The module plays a key role in converting sensor inputs (such as RTDs or thermocouples) into standardized signals for control systems.
| Item | Specification |
|---|---|
| Model | 500TTM02 |
| Order Numbers | 1MB150021R01161 / HF930712X010 |
| Manufacturer | ABB |
| Product Type | Temperature Transmitter Module |
| Input Types | RTD / Thermocouple (depending on configuration) |
| Output Signal | Industrial standard analog/digital signal |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply | DC supply via control system backplane |
| Installation | Control cabinet / rack-mounted system |
The 500TTM02 module is built with a compact and robust electronic architecture that integrates several key components:
Signal Conditioning Unit: Processes raw sensor signals and filters noiseThis integrated design ensures consistent performance even in harsh industrial environments.
The module continuously receives temperature signals from connected sensors, conditions the input, and transmits a calibrated output signal to the main control system. This allows operators to monitor and regulate process temperatures with high precision.
Its stable performance makes it suitable for both critical safety systems and routine industrial monitoring applications.
To ensure reliable operation, the following installation practices are recommended:
Mount the module inside a protected control cabinetAfter installation, calibration checks should be performed to ensure measurement accuracy.
The 500TTM02 is designed for minimal maintenance, but periodic checks are recommended:
Inspect wiring connections for looseness or corrosion
