Switzerland The ABB PFEA113-20 (3BSE050092R20) is a high-precision industrial tension electronics module designed for real-time web tension measurement and control in automated production systems. Developed by ABB, it is widely used in industries where stable material tension is critical, such as paper production, film processing, textile manufacturing, and metal foil winding systems.
This module acts as an intelligent interface between load cells and industrial control systems, enabling accurate tension regulation and improved production quality.
The ABB PFEA113-20 is engineered for precision, stability, and flexibility in demanding industrial environments.
| Parameter | Specification |
|---|---|
| Model | ABB PFEA113-20 |
| Order Code | 3BSE050092R20 |
| Power Supply | 24 V DC (18–36 V) |
| Load Cell Inputs | 4 isolated channels |
| Analog Outputs | Up to 6 configurable outputs |
| Digital Inputs/Outputs | 1 input / multiple outputs |
| Communication | PROFIBUS-DP |
| Operating Temperature | -25°C to +70°C |
| Protection Class | IP20 (IP65 optional) |
| Weight | ~1.05 kg |
| Mounting | DIN rail installation |

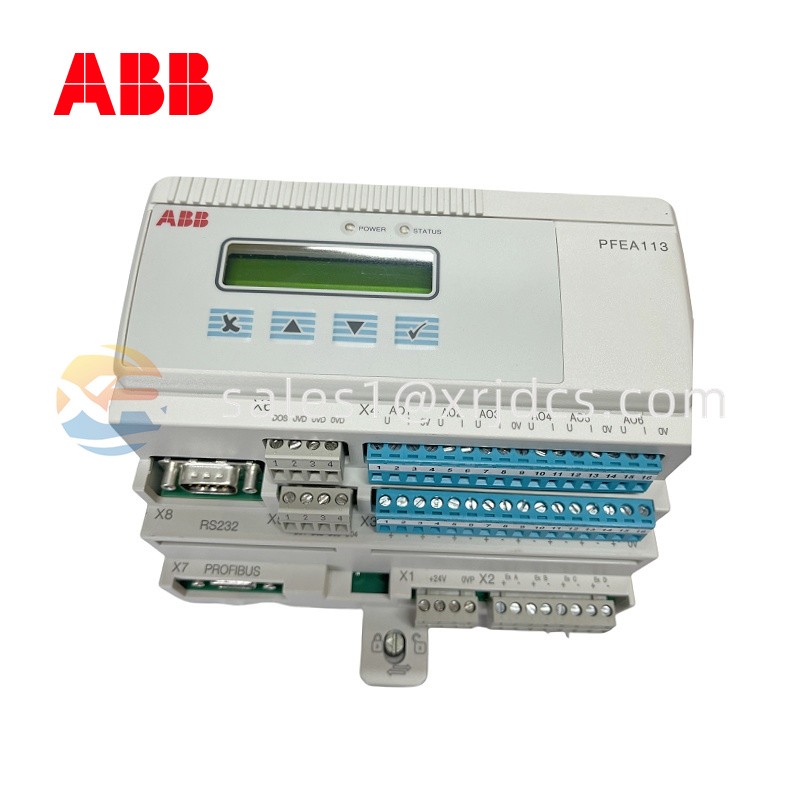

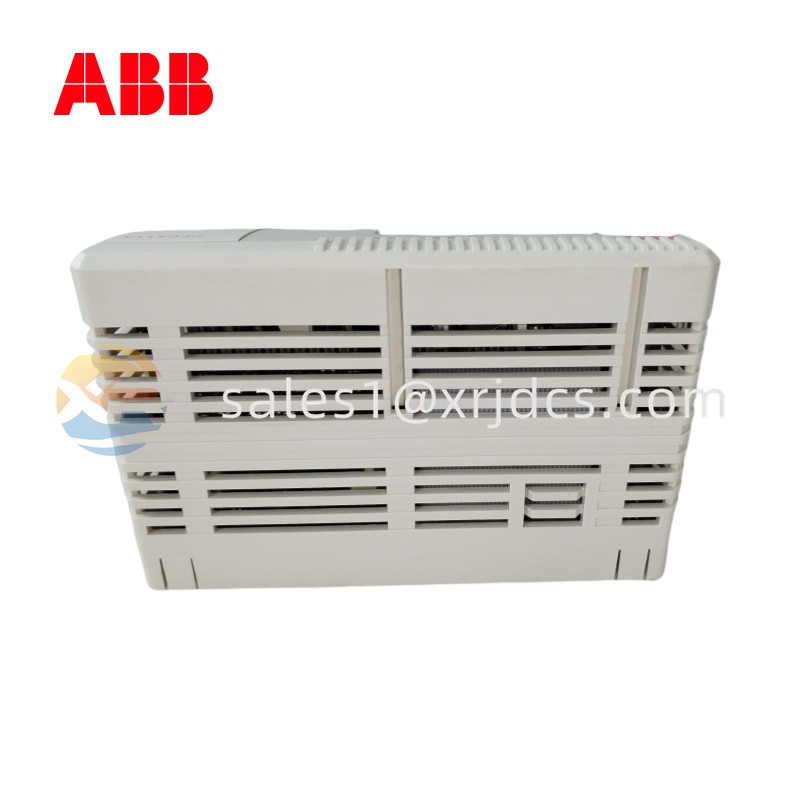

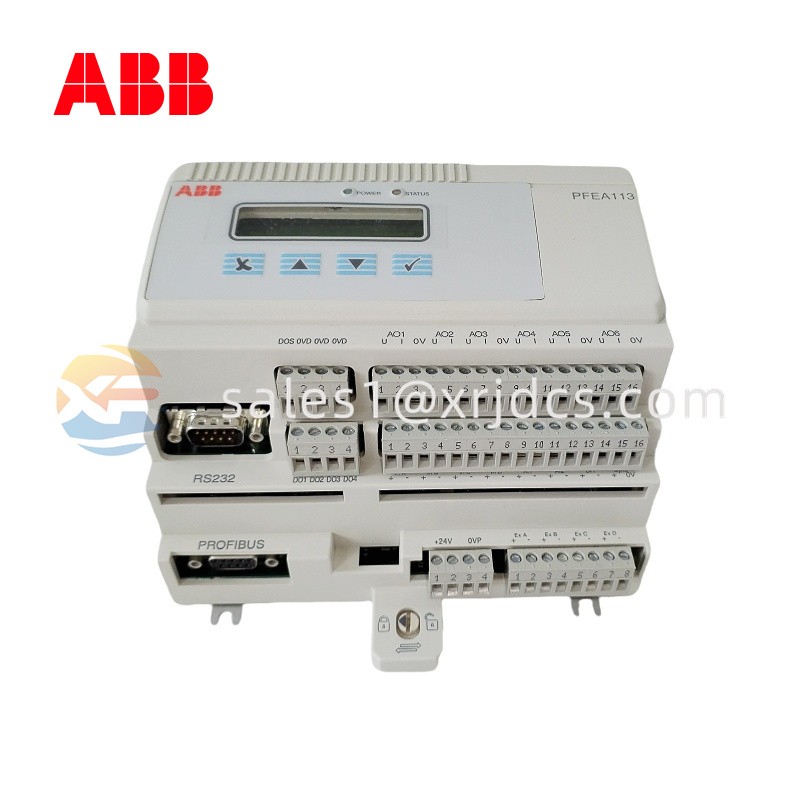

The module features a compact DIN-rail-mounted industrial housing designed for control cabinet integration.
This modular structure simplifies maintenance and supports fast replacement in industrial environments.
The PFEA113-20 continuously receives weak analog signals from load cells, processes them through internal amplification and filtering stages, and converts them into precise tension values. The embedded control algorithm then adjusts output signals to maintain stable material tension in real time.
This closed-loop control mechanism ensures consistent production quality even under varying material speed or load conditions.
The ABB PFEA113-20 is widely used in continuous material processing industries, including:
Paper and pulp production linesIts multi-channel design allows it to handle complex multi-roll tension systems efficiently.
To ensure reliable performance, installation should follow industrial best practices:
Install inside a ventilated control cabinetProper installation significantly improves measurement accuracy and system stability.
The module is designed for low maintenance, but periodic inspection is recommended:
Check load cell wiring integrityBuilt-in self-diagnostics help quickly identify system faults and reduce downtime.
Compared with conventional tension control systems, the ABB PFEA113-20 provides:
High measurement accuracy and stabilityThe ABB PFEA113-20 3BSE050092R20 is a reliable solution for modern industrial tension control systems. Its combination of multi-channel sensing, intelligent control algorithms, and robust industrial design makes it highly suitable for continuous production environments where precision and stability are essential.
