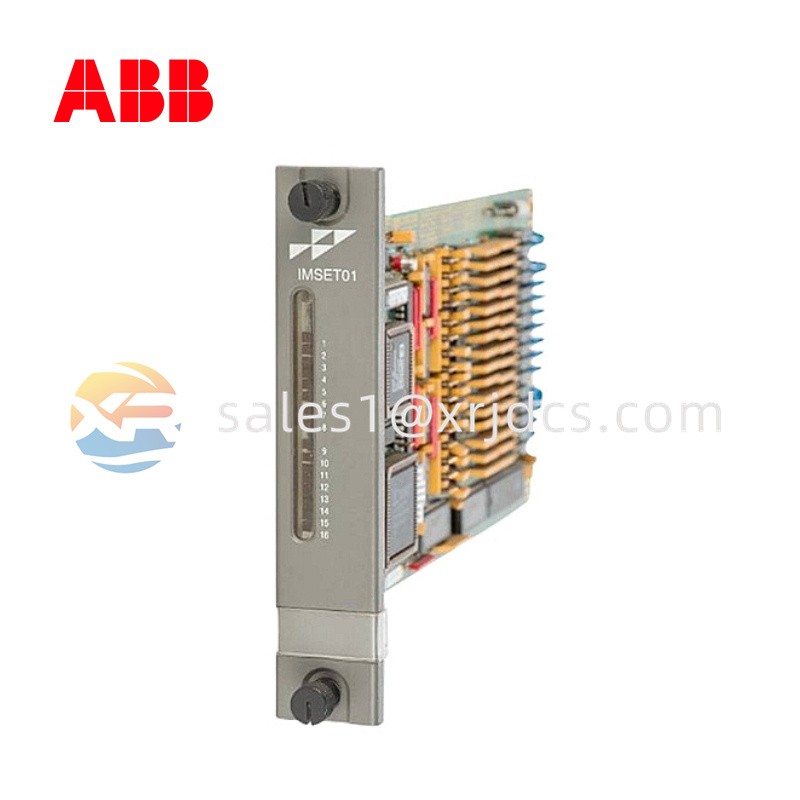

Product Overview
The ABB IMSET01 is a high-precision Sequence of Events (SOE) Timing Module designed for ABB Harmony / INFI 90 distributed control systems. It is used to capture digital field signal changes, assign accurate timestamps to events, and transfer event information to the control system for analysis, monitoring, and troubleshooting.
As an important component of ABB Bailey Harmony I/O architecture, the IMSET01 provides time synchronization capability through connection with the INTKM01 time synchronization module, allowing event records from field devices to be accurately correlated. This makes it especially valuable in applications where identifying the exact sequence and timing of equipment changes is critical.
The module is mainly applied in power plants, process industries, and large automation systems where reliable event recording and millisecond-level timing accuracy are required. It helps operators quickly determine the cause of system trips, alarms, and abnormal operating conditions.
Technical Specifications
| Parameter |
Description |
| Manufacturer |
ABB |
| Model |
IMSET01 |
| Product Type |
Sequence of Events Timing Module |
| System Family |
ABB Bailey Harmony / INFI 90 |
| Main Function |
Digital event acquisition and time stamping |
| Digital Input Channels |
Up to 16 digital field inputs |
| Input Types |
24 VDC, 48 VDC, 125 VDC, 120 VAC |
| Input Isolation |
Optical isolation per channel |
| Communication Bus |
I/O Expander Bus |
| Time Synchronization |
Supported through INTKM01 module |
| Termination Units |
NTST01 and NTDI01 |
| Mounting Position |
One standard module mounting unit slot |
| Operating Temperature |
0°C to 70°C |
| Relative Humidity |
5% to 95% non-condensing |
Functional Description
The primary function of the ABB IMSET01 is to collect digital events from field equipment and record their occurrence time with high accuracy.
In industrial control systems, equipment status changes such as breaker operations, protection trips, alarms, and process transitions often need to be analyzed in chronological order. The IMSET01 captures these digital input transitions and sends the recorded event information to the associated Harmony controller.
The module performs the following functions:
- Monitoring up to 16 digital input signals
- Detecting field signal state changes
- Applying accurate timestamps to events
- Receiving time synchronization information
- Communicating event data to the control system
- Supporting sequence analysis after abnormal events
The controller communicates with the IMSET01 through dedicated SOE function codes, allowing configuration and access to digital event information.
Key Features
High-Accuracy Sequence of Events Recording
The IMSET01 is designed for applications where the exact order and timing of events are important. By recording signal transitions with precise timestamps, the module helps engineers analyze system disturbances and determine the sequence leading to equipment trips or shutdowns.
Multiple Voltage Input Compatibility
The module supports several types of digital field input voltage levels, including 24 VDC, 48 VDC, 125 VDC, and 120 VAC. This flexibility allows connection with different industrial field devices without additional signal conversion equipment.
Optical Signal Isolation
Each digital input channel uses optical isolation technology. This design improves electrical protection between field wiring and internal control electronics, reducing the impact of voltage fluctuations and electrical interference.
Integrated Time Synchronization
Unlike basic digital input modules, the IMSET01 receives decoded time synchronization information from the INTKM01 module. This allows multiple events across the control system to share a consistent time reference.
Reliable Harmony System Integration
The module is specifically designed for ABB Bailey Harmony systems and communicates through the I/O Expander Bus. It provides seamless integration with existing ABB DCS installations.

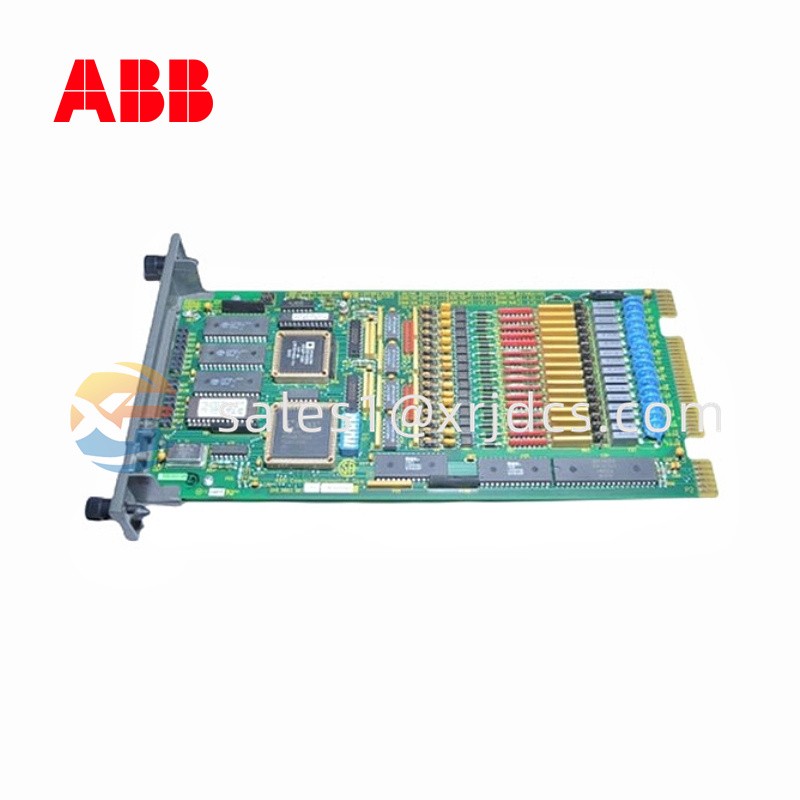

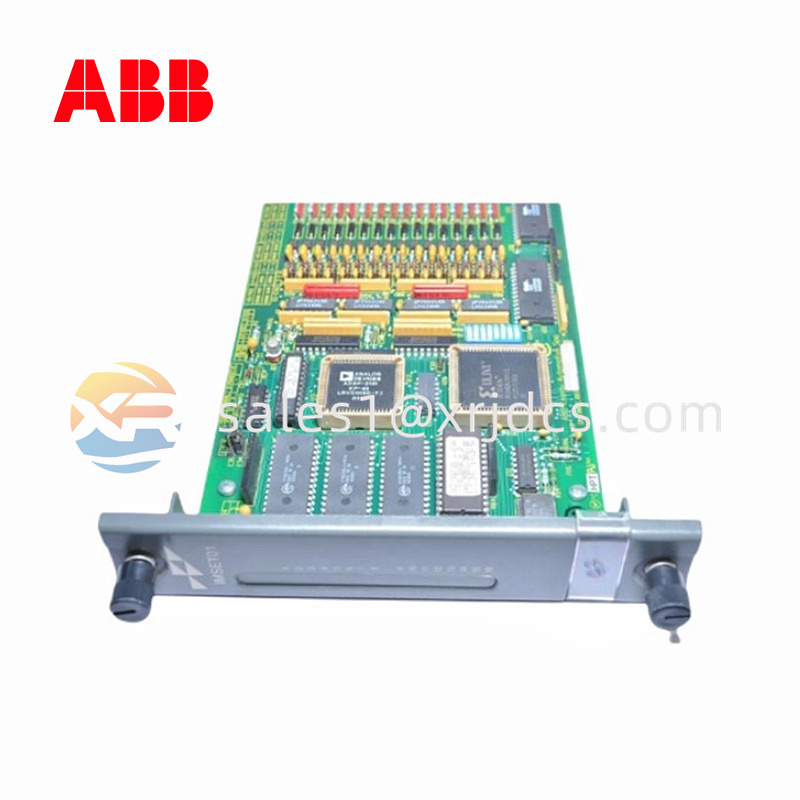

Hardware Structure and Components
The ABB IMSET01 is composed of several functional sections designed for accurate event monitoring.
Digital Input Section
The input section contains 16 isolated digital input channels. These channels receive signals from field devices such as switches, relays, circuit breakers, and protection equipment.
Each channel independently detects status changes and forwards the information to the internal processing circuitry.
Processing Circuit
The internal processor manages input scanning, event detection, timing information, and communication with the controller system.
The module uses dedicated processing hardware to handle sequence recording tasks without affecting the performance of the main controller.
Time Synchronization Interface
The IMSET01 includes a dedicated interface for receiving synchronization information from the INTKM01 module through the NTST01 termination unit. This ensures consistent timing accuracy throughout the SOE system.
Communication Interface
The module communicates with the Harmony controller through the I/O Expander Bus. The bus connection allows the controller to configure input channels and retrieve recorded event information.
Terminal Connection Interface
Field wiring is connected through the NTDI01 termination unit, providing organized signal termination and easier maintenance.
Application Areas
Power Generation Plants
The ABB IMSET01 is widely used in power generation facilities where event recording is essential for equipment protection and fault investigation.
Typical applications include:
- Generator protection monitoring
- Circuit breaker event recording
- Turbine trip analysis
- Electrical protection sequence tracking
Oil and Gas Industry
In oil and gas processing facilities, the module supports monitoring of critical process events and safety-related signals.
Applications include:
- Emergency shutdown systems
- Compressor protection
- Process alarm tracking
- Safety interlock monitoring
Chemical and Process Industries
Process plants require accurate event records to analyze abnormal operating conditions. The IMSET01 helps engineers understand process changes and improve system reliability.
Industrial Automation Systems
The module can be integrated into large automation systems where multiple digital signals must be monitored and recorded in chronological order.
Installation and Maintenance
Installation Guidelines
Before installing the ABB IMSET01, technicians should confirm:
- Compatibility with the ABB Harmony / INFI 90 system
- Correct module address configuration
- Proper jumper and switch settings
- Correct connection of NTDI01 and NTST01 termination units
- Proper installation into the module mounting unit
The module address must match the controller configuration to ensure correct communication over the I/O Expander Bus.
Maintenance Recommendations
To maintain stable operation, regular maintenance should include:
- Checking communication status with the controller
- Inspecting field wiring connections
- Verifying input channel operation
- Checking synchronization signals
- Reviewing SOE event records for abnormal behavior
For critical industrial facilities, keeping spare IMSET01 modules available can reduce downtime during unexpected module failures.
System Compatibility
The ABB IMSET01 is designed for ABB Bailey Harmony and INFI 90 distributed control systems. It operates together with related SOE components, including:
- INTKM01 Time Synchronization Module
- INSEM01 Sequence of Events Manager
- NTST01 Time Synchronization Termination Unit
- NTDI01 Field Termination Unit
The complete SOE architecture allows industrial users to collect, timestamp, and analyze large numbers of digital events across distributed control systems.
Product Summary
The ABB IMSET01 Sequence of Events Timing Module is a specialized digital event monitoring component designed for ABB Harmony and INFI 90 control systems. With 16 isolated digital inputs, multi-voltage signal support, accurate event timestamping, and reliable communication capability, it provides an effective solution for industrial event analysis and system diagnostics.
