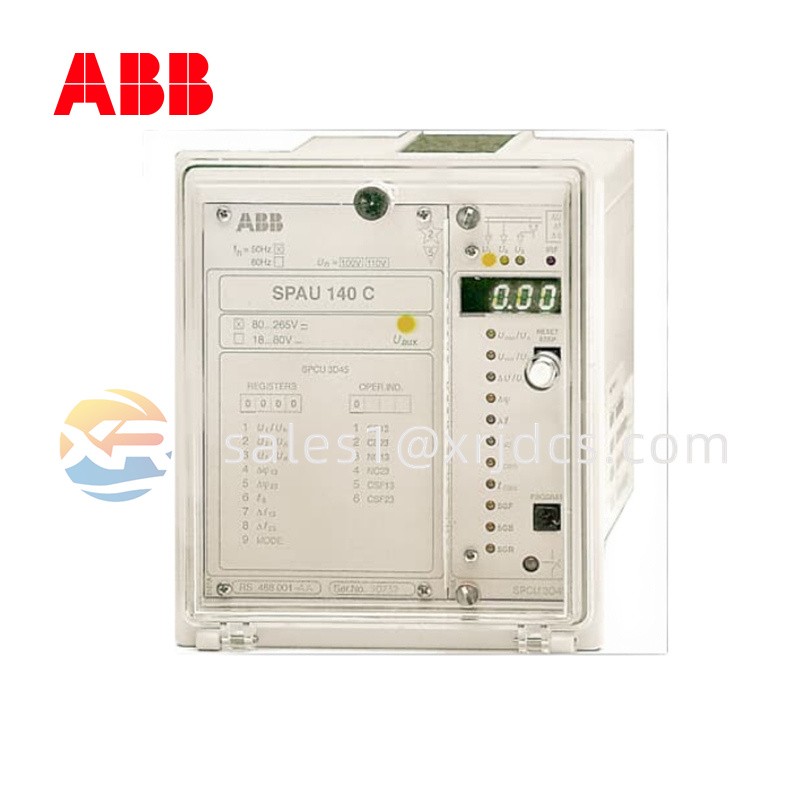

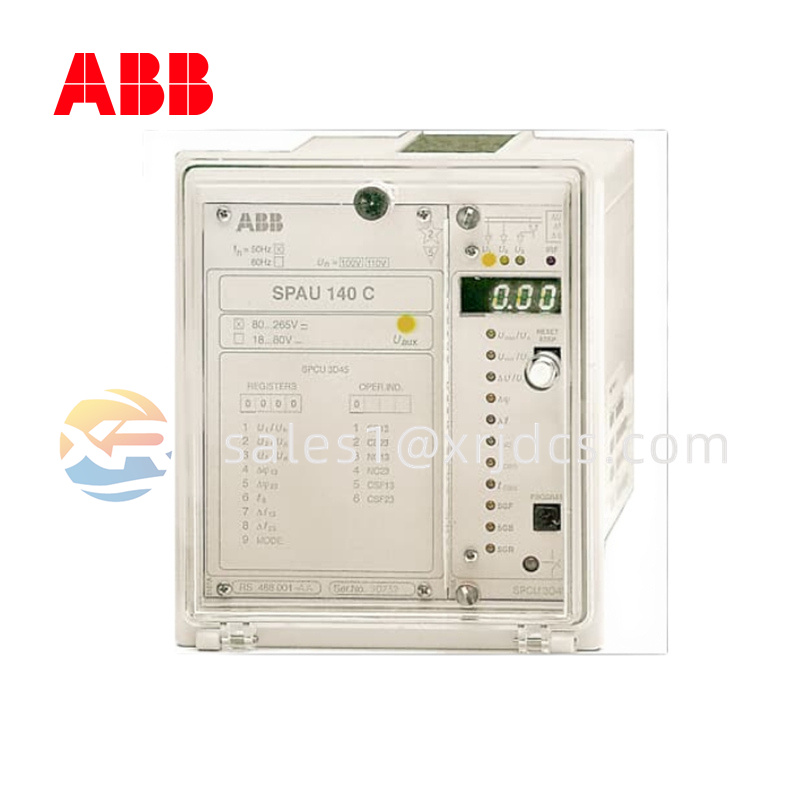

ABB SPAU140C Synchro-Check Relay Module
Product Overview
The ABB SPAU140C Synchro-Check Relay Module is a microprocessor-based protection and control relay designed for verifying synchronization conditions before closing circuit breakers in electrical power systems. It is part of ABB’s well-established SPA protection relay family and is mainly used in applications where two energized power systems, busbars, generators, or network sections need to be safely connected.
The main purpose of the SPAU140C is to ensure that circuit breakers are only closed when synchronization conditions are within predefined limits. By continuously measuring voltage magnitude, frequency difference, and phase angle difference between two electrical systems, the relay helps prevent unsafe switching operations that could cause equipment stress, power disturbances, or system instability.
Designed for utility and industrial power applications, the ABB SPAU140C provides synchro-check functions, voltage-check functions, self-supervision, event monitoring, and communication capabilities through the ABB SPA bus system. It is widely applied in substations, power plants, industrial distribution networks, and generator connection systems.
Technical Specifications
| Parameter |
Description |
| Manufacturer |
ABB |
| Model |
SPAU140C |
| Product Type |
Synchro-Check Protection Relay |
| Relay Family |
ABB SPA Series |
| Main Function |
Circuit breaker closing permission supervision |
| Application |
Generator synchronization and busbar coupling |
| Measurement Principle |
Microprocessor-based voltage measurement |
| Number of Synchronization Checks |
Supports two independent circuit breakers |
| Rated Voltage Inputs |
100 V / 110 V AC |
| Frequency Range |
45...65 Hz |
| Voltage Check Function |
Available |
| Communication Interface |
Optical/electrical SPA serial bus |
| Communication Protocol |
ASCII based SPA communication |
| Data Transfer Rate |
4800 / 9600 Bd selectable |
| Auxiliary Supply Options |
80...265 V AC/DC or 18...80 V DC |
| Mounting Type |
Panel mounting relay unit |
| Diagnostic Function |
Continuous hardware and software self-supervision |
Operating Principle
The ABB SPAU140C operates by comparing the electrical conditions on both sides of a circuit breaker before allowing a closing command.
During synchronization, the relay measures important electrical parameters, including:
- Voltage difference between two systems.
- Frequency difference.
- Phase angle difference.
- Energizing conditions of connected lines or busbars.
When all configured synchronization limits are satisfied, the relay provides a closing permission signal to the circuit breaker control circuit.
If synchronization conditions are outside acceptable limits, the relay blocks the closing operation and prevents potentially damaging switching actions.
This operating principle is particularly important when connecting:
- Generators to utility grids.
- Parallel busbars.
- Ring networks.
- Independent power sources.
Key Features
Reliable Synchronization Supervision
The main feature of the SPAU140C is its ability to verify synchronization conditions before circuit breaker operation. This ensures that electrical systems are connected only when voltage, frequency, and phase conditions are suitable.
The relay improves grid stability and protects generators, transformers, and switching equipment from mechanical and electrical stress.
Dual Circuit Breaker Monitoring Capability
One SPAU140C relay can supervise the closing conditions of two separate circuit breakers. This allows a single relay unit to support multiple switching applications within a power system.
This function reduces the amount of protection hardware required in complex substations and improves system flexibility.
Integrated Voltage Checking Function
Besides synchronization monitoring, the SPAU140C includes voltage-check functions for verifying energizing conditions.
This helps prevent incorrect breaker closing when one side of the switching point is energized unexpectedly.
Four energizing directions can be selected for each monitored circuit breaker.
Continuous Self-Supervision
The relay continuously monitors both hardware and software operation.
Self-supervision functions help detect internal failures and generate alarm signals, improving system reliability and reducing maintenance difficulties.
SPA Bus Communication
The SPAU140C includes a serial communication interface for connection to ABB SPA communication systems.
Through this interface, users can access:
- Relay status information.
- Measurement values.
- Event records.
- Remote parameter settings.
The communication system supports optical and electrical connections using optional SPA bus modules.
Hardware Structure and Components
Measuring Input Section
The input section receives AC voltage signals from the electrical network. These signals are used for synchronization measurement and voltage condition evaluation.
The relay supports rated voltage inputs of 100 V or 110 V depending on configuration.
Microprocessor Processing Unit
The internal microprocessor performs all measurement calculations, logic processing, timing functions, and protection decisions.
The digital processing architecture improves accuracy compared with traditional electromechanical synchronization relays.
Output Relay Section
The SPAU140C contains output contacts used for:
- Circuit breaker closing permission.
- Alarm indication.
- External control functions.
The heavy-duty output contacts are designed for switching applications in industrial and power environments.
Industrial Power Systems
Large industrial facilities often operate multiple power sources. The SPAU140C helps coordinate switching between:
- Utility supply.
- Standby generators.
- Independent electrical networks.
Installation and Maintenance
Installation Guidelines
Before installing the ABB SPAU140C, engineers should verify:
- Correct auxiliary supply voltage.
- Proper voltage transformer connections.
- Correct circuit breaker control wiring.
- Communication interface configuration.
- Proper grounding arrangement.
The relay should be installed inside a suitable protection panel with adequate ventilation and environmental protection.
Commissioning Recommendations
During commissioning, technicians should verify:
- Input voltage measurement accuracy.
- Synchronization limit settings.
- Circuit breaker closing logic.
- Alarm output operation.
- Communication functionality.
Testing should be performed according to approved protection system procedures.
Advantages of ABB SPAU140C
The ABB SPAU140C provides several important advantages:
- Accurate synchronization monitoring.
- Improved circuit breaker operating safety.
- Supports two breaker applications.
- Integrated voltage-check functions.
- Reliable microprocessor-based design.
- Advanced diagnostic capability.
- Compatible with ABB SPA communication systems.
For power plants, substations, and industrial electrical networks, the SPAU140C provides an effective solution for safe and controlled circuit breaker closing operations.
Conclusion
The ABB SPAU140C Synchro-Check Relay Module is a reliable protection and control device designed to supervise synchronization conditions before circuit breaker closing. With advanced voltage measurement, programmable synchronization parameters, self-monitoring functions, and communication capabilities, it provides dependable protection for modern electrical power systems.
