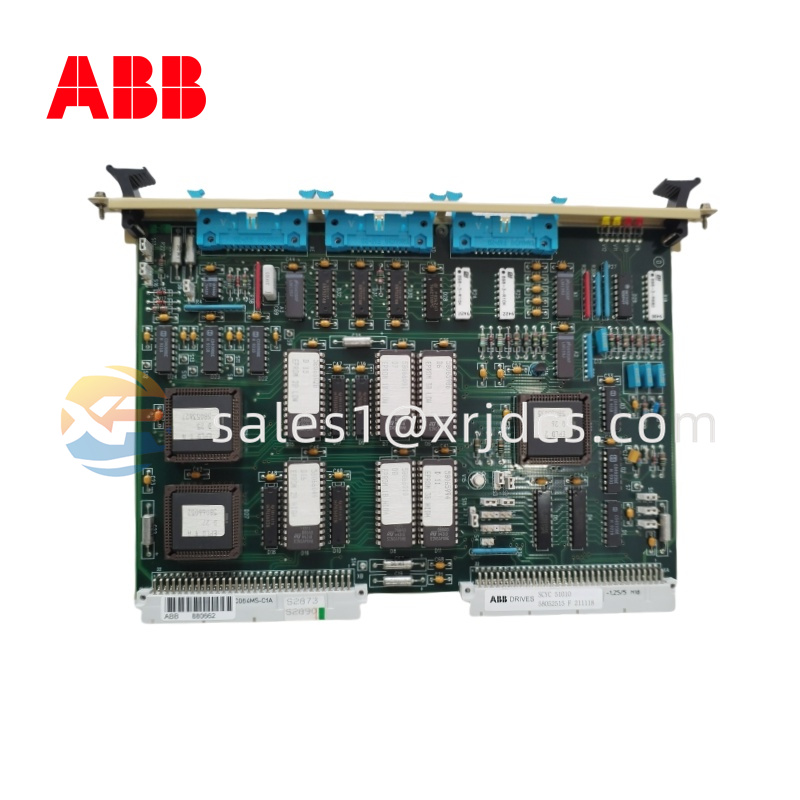

ABB SCYC51220 Pulse Amplifier Module

Product Overview

The ABB SCYC51220 is a legacy industrial electronics module commonly identified as a pulse amplifier or trigger interface module. It is associated with ABB power-converter and drive equipment, where conditioned control pulses are required to operate power semiconductor stages. Several industrial parts references associate this model with ABB part number 63901075C.

Its role is different from that of a conventional PLC I/O module. Instead, it belongs to the specialized control section of power-electronic equipment and works as part of a larger converter architecture.

Main Specifications

• Brand: ABB
• Model: SCYC51220
• Part Number: 63901075C
• Product Type: Pulse amplifier / trigger module
• Primary Function: Pulse amplification and signal conditioning
• Application: ABB drive and power-converter systems
• System Environment: Industrial power electronics
• Product Status: Legacy / maintenance spare

Some online sources publish detailed electrical values for this model, including supply voltage, pulse frequency, and communication interfaces. However, these specifications are not consistently supported across available references. For this reason, the exact electrical parameters should be checked against the documentation and configuration of the host ABB system before installation.

Functional Design

The module is used in the control path between the system's control electronics and power section. Its primary task is to process and amplify control pulses so that the associated power devices can receive appropriate trigger signals.

In some descriptions, SCYC51220 is also associated with multi-channel pulse distribution and feedback handling. One supplier describes a configuration in which electrical control pulses are converted to optical signals for transmission toward the power unit, while status or fault feedback is returned to the control side. This description should be treated as system-dependent rather than a universal specification for every installation.

Key Features

• Dedicated pulse-control functionality for power electronics
• Designed for integration into ABB industrial converter systems
• Supports controlled signal transmission between control and power sections
• Suitable for legacy equipment maintenance
• Compact electronic-board construction
• Helps maintain the signal chain required for controlled semiconductor operation

SCYC51220 appears in parts references together with other ABB converter components, including SCYC51204 and SCYC51213. These components have different functions, so the model number should be checked carefully during replacement.

Typical Applications

This module can be relevant to maintenance of ABB power-control installations, particularly systems using semiconductor-based conversion technology. Potential applications include:

• Industrial drive systems
• Thyristor-based converter equipment
• Power-conversion installations
• High-power motor-control systems
• Legacy ABB automation projects
• Industrial retrofit and spare-parts programs

Its value is particularly relevant when an existing converter must remain in operation and the original control hardware needs replacement.

Installation and Maintenance

Before replacing the board, isolate the associated equipment and follow the site's electrical safety and lockout procedures. Verify the complete part number, board revision, connectors, and host-system configuration.

Do not assume that another SCYC-series board can replace this unit simply because it has a similar appearance. For example, available references identify SCYC51213 as a firing-unit component, while SCYC51220 is associated with pulse-amplifier functionality.

For storage, keep the module in a clean, dry, ESD-protected environment. During troubleshooting, inspect the surrounding control boards, pulse connections, optical interfaces where applicable, and power-stage feedback circuits. A failure elsewhere in the signal chain can produce symptoms that appear to originate from the pulse-control module.
