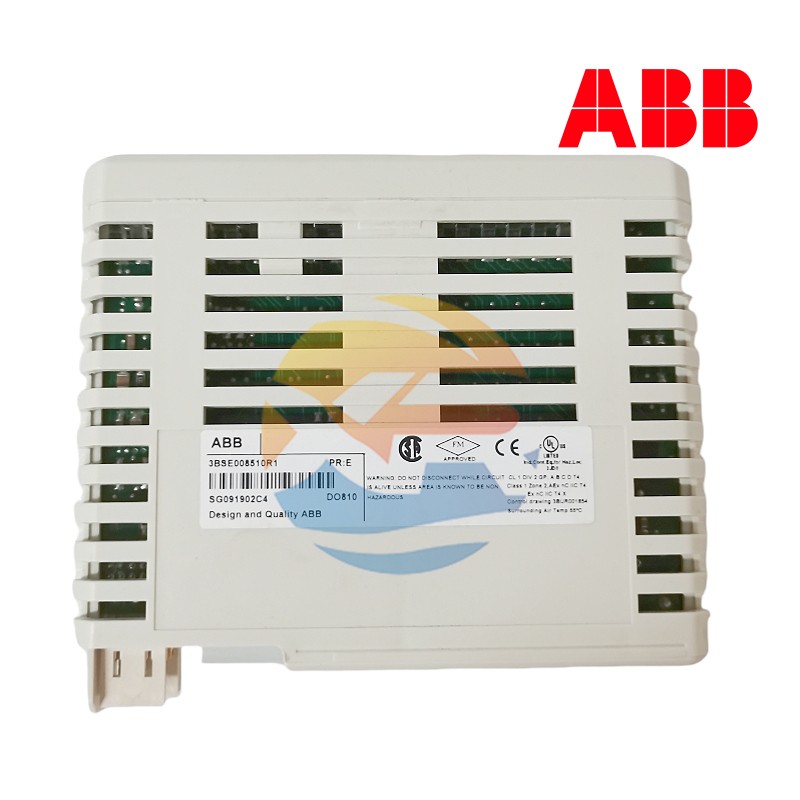

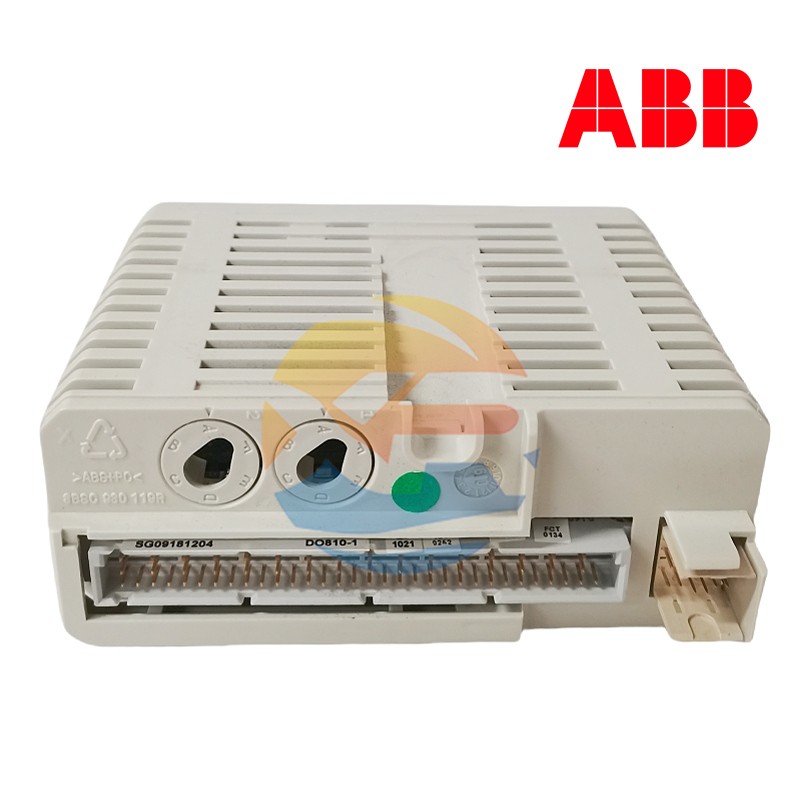

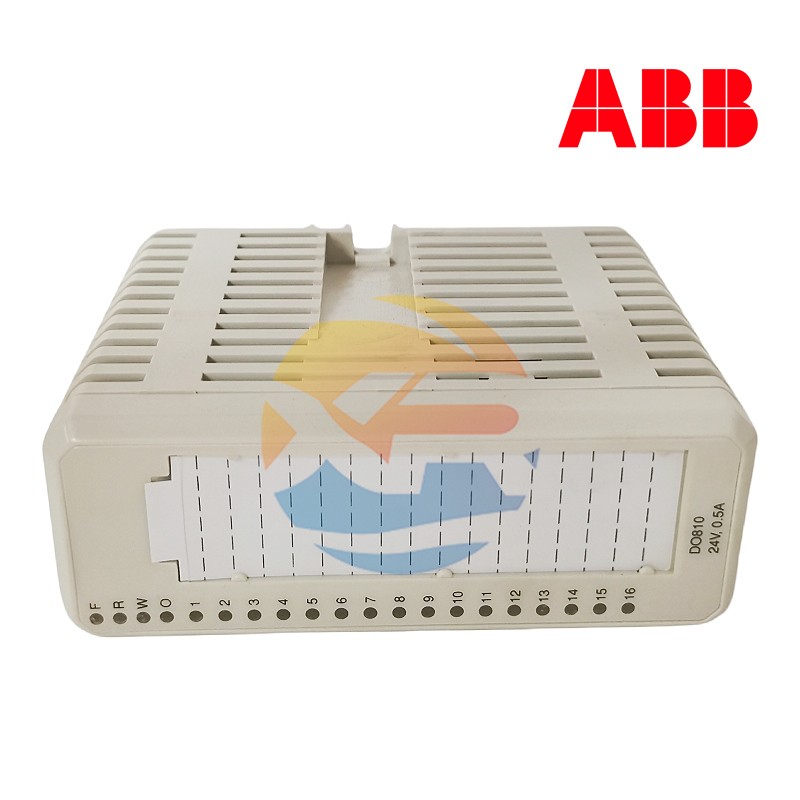

ABB DO810 3BSE008510R1

The ABB DO810 3BSE008510R1 is a digital output module specifically designed for industrial automation. Its primary function is to convert digital signals into relay control signals for driving various devices and actuators. This module features the following characteristics and parameters:

Channel Configuration:

• 16 digital output channels, divided into two groups of 8 channels each
• Relay output type with short-circuit protection and overvoltage protection

Power & Electrical Specifications:

• Input voltage range: 24V DC
• Maximum continuous output current: 0.5A
• Output voltage range: 10-30V with impedance > 1KΩ

Communication Interfaces:

• Supports Profibus-DP V1, Ethernet, and serial communication
• Module terminal units (such as TU810, TU812) enhance connectivity and isolation

Dimensions & Installation:

• Dimensions: 12.4 x 12.2 x 8.5 cm
• Weight: 0.5 kg
• DIN rail mounting installation

Operating Environment:

• Operating temperature range: -25°C to +70°C
• Storage temperature range: -40°C to +85°C
• Complies with UL and CE standards, suitable for various industrial environments

Applications:

• Widely used in industrial automation, process control, packaging machinery, plastic machinery, energy optimization, and smart buildings
• Controls devices such as motors, valves, and relays

The ABB DO810 3BSE008510R1 delivers reliable performance for demanding industrial applications.
