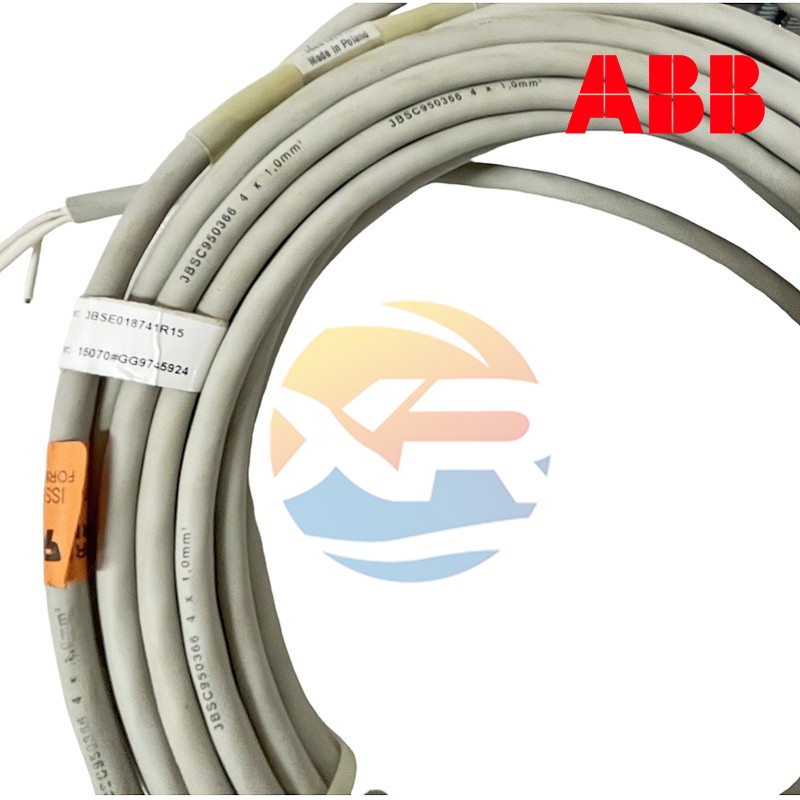

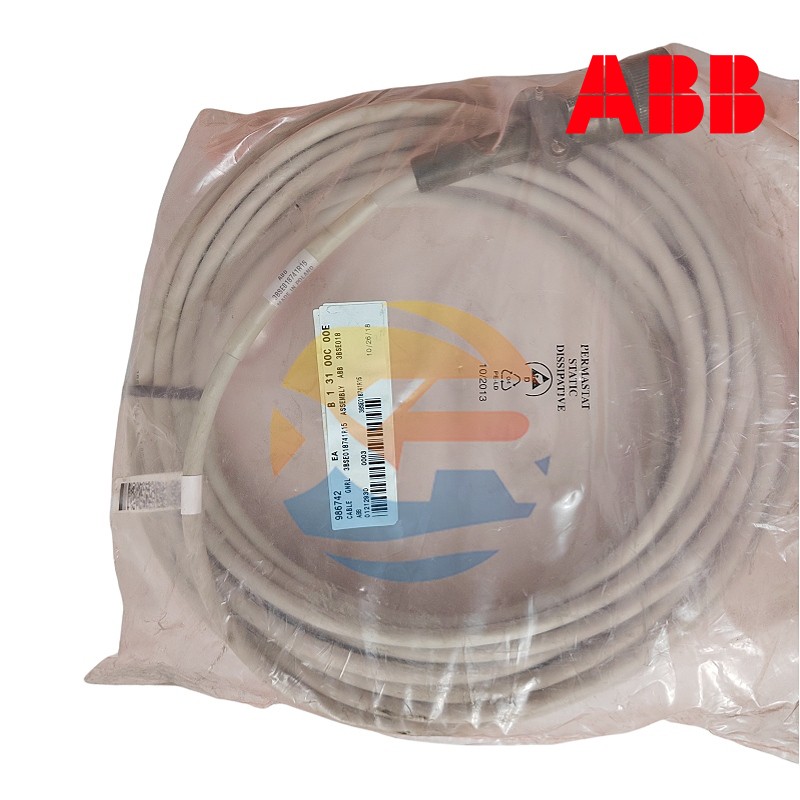

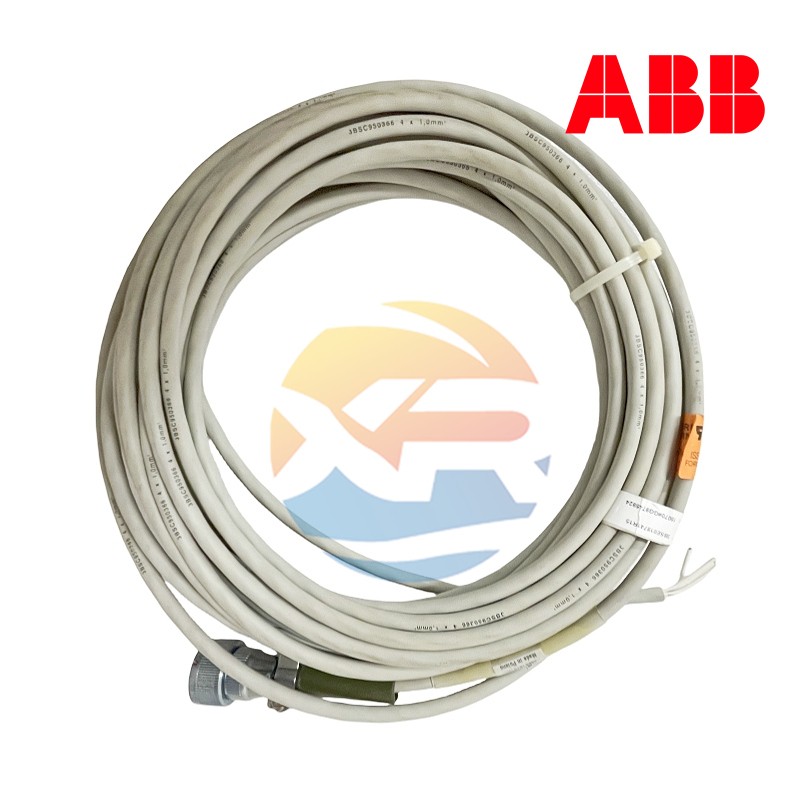

ABB RVVP-TPE(3BSE018741R15)
The ABB RVVP-TPE(3BSE018741R15) is a cable specifically designed for industrial automation. It belongs to the category of flexible cables with copper core, PVC insulation, shielded layer, and PVC sheath (RVVP), featuring anti-interference capabilities and high flexibility. It is suitable for connecting devices such as sensors and actuators. Its design complies with international standards, making it widely used in industrial control, force measurement, tension detection, and other fields.
Parameters
Rated voltage: 300/500V or 300/300V (for different application scenarios).
Conductor: Multi-strand copper conductor, compliant with national or international standards.
Insulation material: Polyvinyl chloride (PVC) compound, providing basic insulation performance.
Shielding layer: Tinned copper wire braided shield, enhancing electromagnetic compatibility.
Sheath material: Flexible polyvinyl chloride (PVC) compound, featuring wear resistance and good flexibility.
Core specifications: Number of cores ranges from 2 to 24, with cross-sectional area of 0.5-25 mm², meeting diverse connection needs.
Operating temperature: Normal range ≤70℃; higher temperatures are supported for special applications.
Length and connector: Standard length is 15 meters, with a male plug connector for quick installation.
Product Features
High anti-interference: Tinned copper wire braided shield effectively suppresses electromagnetic interference, suitable for complex electromagnetic environments.
High-precision transmission: Uses high-purity oxygen-free copper (OFC) core to reduce resistance and ensure stable signal transmission.
Environmental resistance: Wide operating temperature range (-40℃ to +85℃), suitable for extreme industrial scenarios.
Modular design: Compatible with various industrial equipment (such as PLCs, sensors, actuators), supporting flexible expansion.
Long lifespan and reliability: Industrial-grade components and strict craftsmanship ensure long-term stable operation.
Structure and Composition
Conductor: Multi-strand copper conductor, providing low resistance and high conductivity.
Insulation layer: PVC compound, offering basic insulation and mechanical protection.
Shielding layer: Tinned copper wire braid, forming electromagnetic shielding to reduce interference.
Sheath: Flexible PVC compound, enhancing flexibility and anti-aging properties.
Connector: Standard male plug design, facilitating quick insertion, removal, and connection.
Application Fields
Industrial automation: Used to connect sensors, actuators, and control modules in PLC and DCS systems.
Force and tension measurement: Suitable for precision equipment such as web tension meters (e.g., PFTL101/201/PFCL201).
Robotics and mechanical control: Supports high-precision motion control in CNC machine tools, robot joints, etc.
Energy and manufacturing: Applied in sensor networks in fields such as petroleum, chemical engineering, textiles, and automobile manufacturing.
Environmental monitoring: Used to collect and transmit environmental data such as temperature, humidity, and pressure.
Installation and Maintenance
Installation Requirements
Ensure the cable is kept away from strong electromagnetic sources to avoid interference.
Connect according to standard wiring diagrams, paying attention to polarity matching.
In high-temperature or humid environments, select temperature-resistant or waterproof sheaths.
Maintenance Recommendations
Regularly check if connectors are loose and reinsert them if necessary.
Avoid mechanical damage to prevent insulation layer breakage.
