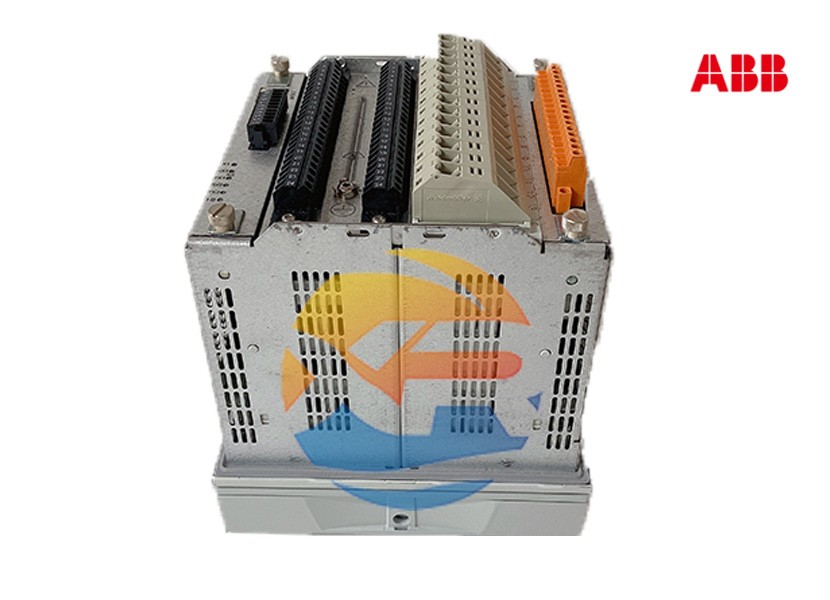

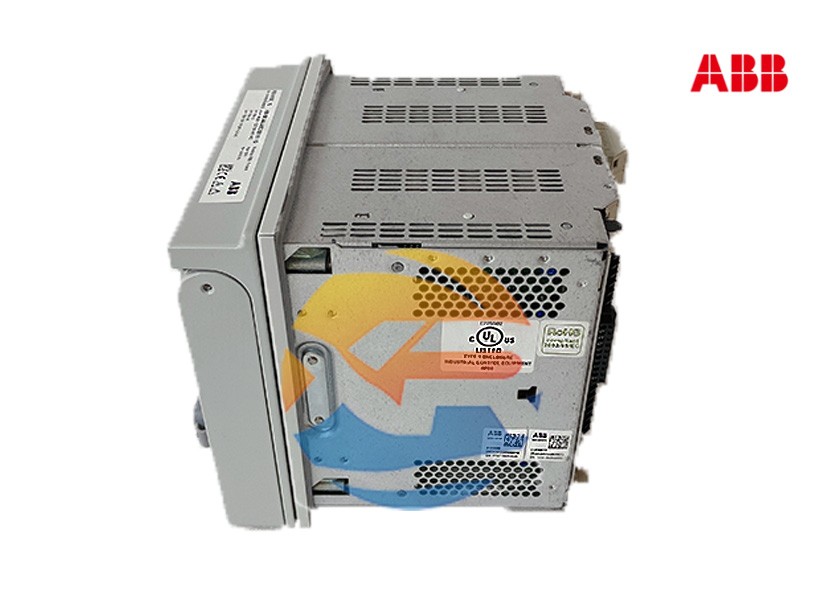

Switzerland REM615E1G HBMBCAAJABC1BNN1G1 is a high-performance intelligent protection relay widely applied in the fields of motor protection, control, and power distribution automation within power systems. Combining advanced digital technology with modular design, this product features high reliability and flexibility, suitable for various industrial scenarios such as power plants, substations, manufacturing, petrochemicals, transportation systems, etc.
Rated Voltage: 100-240V AC (for low-voltage applications) or 10kV (for medium-voltage applications, subject to specific application scenarios).
Rated Current: Up to 10A (input terminal); the output supports 6 digital outputs and 2 analog outputs.
Frequency: 50/60Hz.
Operating Temperature: -20°C to 60°C (some models support -40°C to 70°C).
Communication Protocols: Supports IEC 61850, Modbus RTU/TCP, DNP3.0, IEEE 1588 v2, etc.
Input/Output: 4 digital inputs, 2 analog inputs; 6 digital outputs, 2 analog outputs.
Dimensions: 150mm × 100mm × 50mm (compact design).
Weight: Approximately 500g (excluding accessories).
Provides comprehensive protection functions such as overload, phase loss, locked rotor, overheating, undervoltage, stall, underload, etc.
Supports transformer differential protection (87T), restricted ground fault protection (optional), and multi-stage overcurrent protection.
Adopts advanced microprocessor technology for fast fault detection and response.
Built-in fault recording function to log electrical quantity changes for auxiliary fault analysis.
Supports multiple communication protocols for seamless integration into substation automation systems.
Modular design facilitates function expansion and configuration.

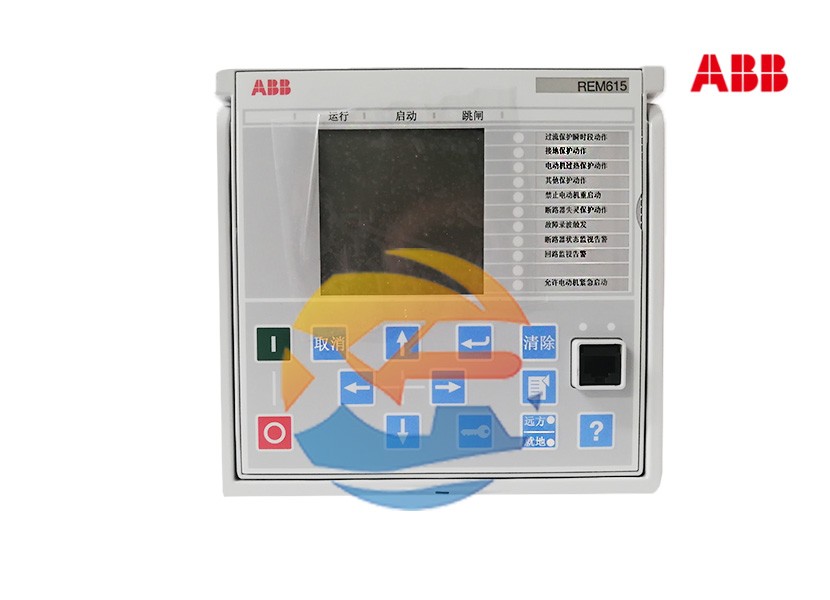

Equipped with a large LCD display (HMI), supporting local and Web interface operations.
Provides easy parameter setting to reduce debugging complexity.
Protection Module: Integrates multi-stage overcurrent, differential protection, ground fault protection algorithms, etc.
Measurement Module: Monitors parameters like current, voltage, power, and energy in real time.
Communication Module: Supports protocols such as IEC 61850 and Modbus for remote monitoring.
Standard Installation: DIN rail mounting (common in low-voltage scenarios).
Panel Mounting: Suitable for medium-high voltage scenarios like transformer protection.
Protection class IP20 or higher, adapted to industrial environments.
Used for motor protection and control in power plants, substations, and distribution systems.
Widely applied in CNC machinery, metallurgy, textiles, food processing, etc.
Suitable for wind power, solar power, traffic signal control, vehicle management systems, etc.
HVAC, lighting systems, safety control systems.
Environmental Preparation: Ensure the temperature and humidity meet requirements (-20°C to 60°C), avoiding vibration and corrosion.

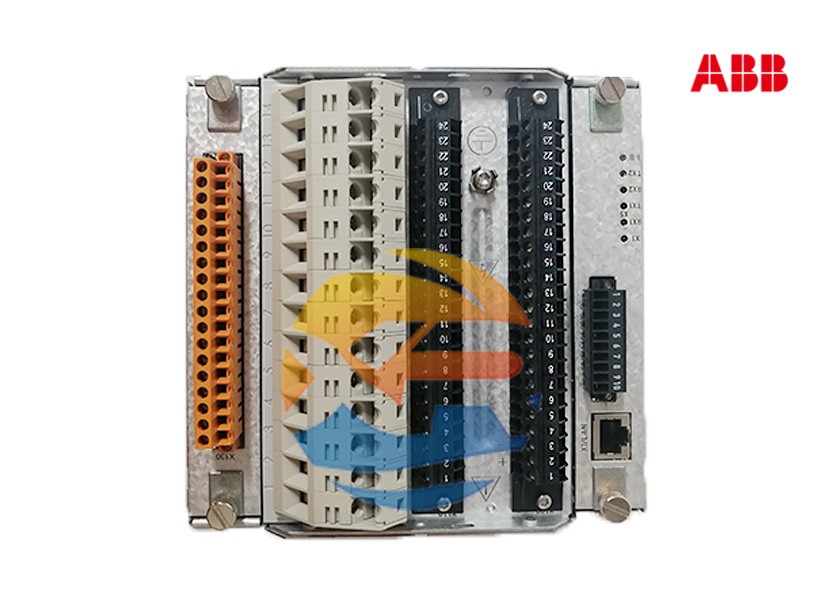

Wiring & Debugging: Connect input/output terminals according to design drawings and configure parameters using ABB-provided tools.
Communication Configuration: Docking with the upper-level system via Modbus or IEC 61850 protocol.
Regular Inspection: Clean the relay surface, check terminal tightness, and test protection logic.
Preventive Maintenance: Conduct a comprehensive function test every 6 months, including simulated fault response.
Fault Handling: Record fault codes and contact ABB technical support.
Provides 12-month warranty covering manufacturing defects.
Supports remote diagnosis and on-site services to ensure quick response.
